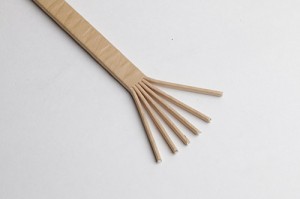

Kraft Paper Insulated Conductor
- The paper is strong and can not be torn easily.
- Mainly used in transformer coils cooled with oil.

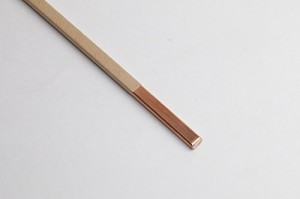

Rectangular Cross Section
| Properties | Copper Values | Aluminum Values | Unit |
|---|---|---|---|
| Width | 3.00 ≤ W ≤ 30.00 | 3.00 ≤ W ≤ 30.00 | mm |
| Thickness | 1.00 ≤ T ≤ 12.00 | 1.00 ≤ T ≤ 12.00 | mm |
| Cross Section | 3.00 ≤ CS ≤ 200.00 | 3.00 ≤ CS ≤ 200.00 | mm2 |

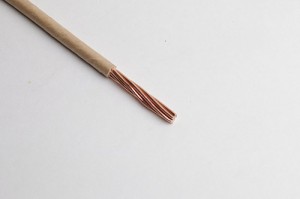

Round Cross Section
| Properties | Copper Values | Aluminum Values | Unit |
|---|---|---|---|
| Diameter | 2.00 ≤ 0 ≤ 10.00 | 2.00 ≤ 0 ≤ 10.00 | mm |
| Cross Section | 3.00 ≤ CS ≤ 100.00 | 3.00 ≤ CS ≤ 100,00 | mm2 |
Technical Specifications
| Properties | Copper Values | Aluminum Values | Unit |
|---|---|---|---|
| Insulation application | Up to12 layers %25-%50 overlap, customer specification | Up to12 layers %25-%50 overlap, customer specification | mm |
| Insulation material | %100 Kraft paper | %100 Kraft paper | mm |
| Breakdown voltage | IEC 317-27 or customer specification | IEC 317-27 or customer specification | kv |
Standards
| Properties | Copper Values | Aluminum Values | Unit |
|---|---|---|---|
| IEC, DIN, TS | IEC 317-27 IEC 851-1..6 ( for testing) Customer specifications | IEC 317-27 IEC 851-1..6 ( for testing) Customer specifications |
